Elbow prosthesis revision with custom-made ulnar stem

Department of Medicine, Surgery and Dentistry, University of Salerno, Baronissi (SA), Italy
Department of Medical and Surgical Specialties and Dentistry, University of Campania “L. Vanvitelli”, Naples, Italy
Department of Medicine, Surgery and Dentistry, University of Salerno, Baronissi (SA), Italy
Unit of Orthopedics and Traumatology, “San Francesco D’Assisi” Hospital, Oliveto Citra (SA), Italy
Unit of Orthopedics and Traumatology, “San Francesco D’Assisi” Hospital, Oliveto Citra (SA), Italy
ACOTO
mobilization stem prosthesis elbow revision custom-made complications

Abstract

Introduction. Total elbow arthroplasty (TEA) is a relatively infrequent orthopedic procedure compared to other types of arthroplasty operations, such as knee and hip replacements. To date, the indications have expanded to include non-synthesizable distal humerus joint fractures, osteoarthritis, and post-traumatic arthritis.
Case presentation. A 75-year-old woman presented to the emergency room following an accidental fall at home. Radiographic control revealed a distal diaphyseal fracture of the humerus on the left with complete paralysis of the radial nerve and mobilization of the ulnar stem of the TEA on the right. It was decided for an initial reduction and synthesis of the left distal humerus fracture with a plate and screws and subsequent partial revision surgery of the TEA. In the following two weeks of follow-up, significant skin distress generated by the apex of the ulnar stem was observed. We proceeded with synthesis and partial reconstruction of the ulna with cadaver bone and plate and screws before the definitive operation. After approximately 3 months, we proceeded with the definitive operation to remove the fixation devices and revision of the ulnar component of the TEA. At 12 months of follow-up, the patient had excellent results with a slight deficit in extension and flexion, without painful symptoms.
Conclusions. TEA revision is an increasingly frequent intervention. This is due to the gradual increase in primary implants, but also due to the expansion of surgical indications. The main causes of revision are component loosening and post-trauma periprosthetic fractures. In the present case, the revision surgery of the ulnar component of a TEA with a custom- made stem was associated with satisfactory clinical and radiographic results throughout follow-up. There are few articles in the literature dealing with this topic. To date, revision of TEA is still a challenge due to the complexity of the operation and related complications.

Introduction

Total elbow arthroplasty (TEA) is a relatively infrequent orthopedic procedure compared to other types of arthroplasty procedures, such as knee and hip replacements 1. It was initially indicated as a treatment to manage end-stage rheumatoid arthritis 2. To date, the indications have expanded to include non-synthesizable distal humerus joint fractures, osteoarthritis, and post-traumatic arthritis 3-11. The design of TEA systems has evolved in recent decades. The first TEA was described in 1972 by Dee who reported the results of this intervention in patients with rheumatoid arthritis 2. We present a case of mobilization of the ulnar component of a post-traumatic TEA with in-depth analysis of the surgical management and the results at the follow-up.

Case presentation

A 75-year-old woman presented to the emergency room of Oliveto Citra Hospital (SA, Italy) following an accidental fall in a domestic environment. The patient, suffering from rheumatoid arthritis, has a reverse shoulder prosthesis and TEA on the right for 5 years. Clinically there is widespread edema and ecchymosis in the distal third of the left humerus with pain on palpation and total functional impotence. On the right, there is pain referred to palpation of the ulnar region of the middle third of the forearm. Following diagnostic investigations, a distal diaphyseal fracture of the humerus on the left was found with complete paralysis of the radial nerve (Fig. 1) and mobilization of the ulnar stem of the TEA on the right (Fig. 2).

Operative planning consisted of two phases:

  1. first phase: reduction and synthesis of the fracture of the left distal humerus with a plate and screws (Fig. 3) with exploration of the radial nerve, which was incarcerated in the fracture site but intact throughout its course (Fig. 4);
  2. second phase: partial revision surgery of the elbow with replacement of the ulnar component with a custom-made stem (waiting time 3 months).

In the following two weeks of follow-up, it was observed that the apex of the ulnar stem generated increasingly greater skin distress, with identification of the same on palpation of the middle third of the forearm (Fig. 5). For this reason, we proceeded with synthesis and partial reconstruction of the ulna with cadaver bone and plate and screws before the definitive surgery (Fig. 6). Numerous intra-operative swabs were taken to exclude the risk of infection of the implant.

After approximately 3 months, following further radiographic planning and an excellent post-operative recovery, we proceeded with the definitive operation of removal of the prosthetic implant and fixation devices, and custom-made prosthetic revision with a 160 mm cemented ulnar stem (Fig. 7). The request for a custom-made ulnar stem was given by the need to have a longer than standard ulnar stem. The revision stem has, upon our request, anchoring holes for the triceps brachii with high-strength wires (Fig. 8A-B). During the definitive operation, good osteo-integration of the previously implanted cadaver ulnar bone splint was observed.

Post-operative radiographic checks showed good positioning of the prosthetic components. Clinical and radiographic controls at 1, 3 and 6 months showed satisfactory results. At 12 months of follow-up, the radiographic checks were optimal (Fig. 9A) and the patient presented clinically an extension deficit of 15° and 10° degrees of flexion, without painful symptoms and no limitations in daily living activities.

Discussion

TEA is a relatively infrequent procedure compared to other types of arthroplasty procedures, and has higher rates of complication compared to other arthroplasty interventions 12. To date, with the increase in TEA implants, the risk of short and long-term complications has also increased 13-15. The most important complications are infections, aseptic mobilization, instability and periprosthetic fractures 13,16-20. Complications are observed more frequently in obese, smoking, and young patients, as well as those with numerous comorbidities 21-27. There are few studies in the literature discussing this topic on many patients. Peretta et al. 26 studied the main causes of revision TEA in a cohort of 102 primary implants in 82 patients, observed over approximately 25 years. The revision rate of the prosthetic implant was 41% (42 of 102). The main cause of revision was the loosening of the prosthetic components, present in about half of the cases. The next most common cause is trauma. According to their study, the average duration of the implant is approximately 5 years. Gill and Morrey 28 in their study of 69 patients reported different values, with a survival percentage of TEA of 94.4% at 5 years and 92.4% at 10 years. It is stated in the literature that primary implant failure rates are higher in traumatic cases than in arthritic cases 26,29,30. Our case mirrors what is also described in the literature. The patient had undergone TEA surgery 5 years prior. She had rheumatoid arthritis, a major indication for surgical treatment. She presented a mobilization of the post-traumatic ulnar component. At our follow-up, although short (12 months), the patient showed excellent results such as lack of pain and near complete recovery of elbow mobility.

Conclusions

TEA revision is an increasingly frequent intervention. This is due to the gradual increase in primary implants, also due to the expansion of surgical indications. The main causes of revision are component loosening and post-trauma periprosthetic fractures. In our case, revision surgery of the ulnar component of a TEA with a custom-made stem showed satisfactory clinical and radiographic results throughout follow-up. There are few articles in the literature dealing with this topic. To date, revision of TEA is still a challenge due to the complexity of the operation and related complications.

Conflict of interest statement

The authors declare no conflict of interest.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Author contributions

GA, GT: writing – original draft, writing – review & editing, study selection, data collection and extraction, risk of study bias assessment; FM: writing – original draft, study selection, data collection; AA: writing – original draft, writing – review & editing; GV writing – original draft, writing – review & editing; GC: writing – original draft, writing – review & editing, final approval. All authors: final approval.

Ethical consideration

This study was approved by the Institutional Ethics Committee (ASL SALERNO, P.O. Oliveto Citra). The research was conducted ethically, with all study procedures being performed in accordance with the requirements of the World Medical Association’s Declaration of Helsinki. Written informed consent was obtained from each participant/patient for study participation and data publication.

Figures and tables

Figure 1.Left distal humerus shaft fracture with complete radial nerve paralysis.

Figure 2.Mobilization of the ulnar stem.

Figure 3.Reduction and fixation of the left distal humerus fracture with plate and screw.

Figure 4.Exploration of the radial nerve, intact throughout its course.

Figure 5.Apex of the ulnar shaft outside the medullary canal of the ulna.

Figure 6.Partial reconstruction of the ulna with cadaver bone, plate and screws.

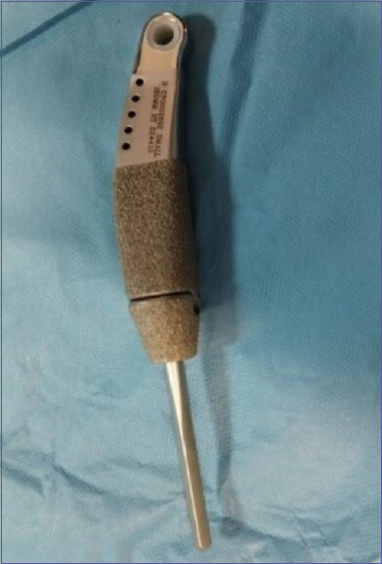

Figure 7.Custom-made ulnar stem: proximally, anchor holes for the triceps brachii.

Figure 8.A) removal of the old ulnar stem and screw plate: on the right, note the good osteo-integration of the cadaveric bone splint and the regularization osteotomy of the ulnar region; B) preparation of the ulnar canal and implantation of the custom-made stem: on the right, note the holes for anchoring the triceps brachii.

Figure 9.A) radiographic check-up at 12 months; B) clinical check-up at 12 months, slight deficit in flexion and extension of the right elbow without painful symptoms.

References

  1. Prkic A, de Vos MJ, Wagener ML. Total elbow arthroplasty: why and how. JBJS. 2017; 7:E5. DOI
  2. Dee R. Total replacement arthroplasty of the elbow for rheumatoid arthritis. J Bone Joint Surg Br. 1972; 54:88-95.
  3. Broberg MA, Morrey BF. Results of delayed excision of the radial head after fracture. J Bone Joint Surg Am. 1986; 68:669-674.
  4. Giannicola G, Sacchetti FM, Antonietti G. Radial head, radiocapitellar and total elbow arthroplasties: a review of recent literature. Injury. 2014; 45:428-436. DOI
  5. Hackl M, Müller LP, Leschinger T. Total elbow arthroplasty in traumatic and post-traumatic bone defects. Der Orthopade. 2017; 46:990-1000. DOI
  6. Lami D, Chivot M, Caubere A. First-line management of distal humerus fracture by total elbow arthroplasty in geriatric traumatology: results in a 21-patient series at a minimum 2years’ follow-up. Orthop Traumatol Surg Res. 2017; 103:891-897. DOI
  7. Mansat P, Bonnevialle N, Rongières M. The role of total elbow arthroplasty in traumatology. Orthop Traumatol Surg Res. 2014; 100:S293-S298. DOI
  8. Pogliacomi F, Schiavi P, Defilippo M. Total elbow arthroplasty following complex fractures of the distal humerus: results in patients over 65 years of age. Acta Biomedica Atenei Parmensis. 2016; 87:148-155.
  9. Pooley J, Salvador Carreno J. Total elbow joint replacement for fractures in the elderly – functional and radiological outcomes. Injury. 2015; 46:S37-S42. DOI
  10. Rajaee SS, Lin CA, Moon CN. Primary total elbow arthroplasty for distal humeral fractures in elderly patients: a nationwide analysis. J Shoulder Elbow Surg. 2016; 25:1854-1860. DOI
  11. Schoch BS, Werthel JD, Sánchez-Sotelo J. Total elbow arthroplasty for primary osteoarthritis. J Shoulder Elbow Surg. 2017; 26:1355-1359. DOI
  12. Ramirez MA, Cheung EV, Murthi AM. Revision total elbow arthroplasty. J Am Acad Orthop Surg. 2017; 25:E166-E174. DOI
  13. Klug A, Gramlich Y, Buckup J. Trends in total elbow arthroplasty: a nationwide analysis in Germany from 2005 to 2014. Int Orthop. 2018; 42:883-889. DOI
  14. Krukhaug Y, Hallan G, Dybvik E. A survivorship study of 838 total elbow replacements: a report from the Norwegian Arthroplasty Register 1994-2016. J Shoulder Elbow Surg. 2018; 27:260-269. DOI
  15. Zhang D, Chen N. Total elbow arthroplasty. J Hand Surg. 2019; 44:487-495. DOI
  16. Brinkman JM, de Vos MJ, Eygendaal D. Failure mechanisms in uncemented Kudo type 5 elbow prosthesis in patients with rheumatoid arthritis: 7 of 49 ulnar components revised because of loosening after 2-10 years. Acta orthopaedica. 2007; 78:263-270. DOI
  17. Kim HJ, Kim JY, Kee YM. Total elbow arthroplasty under unfavourable soft tissue conditions. Int Orthop. 2018; 42:367-374. DOI
  18. Kim JM, Mudgal CS, Konopka JF. Complications of total elbow arthroplasty. J Am Acad Orthop Surg. 2011; 19:328-339. DOI
  19. Park SE, Kim JY, Cho SW. Complications and revision rate compared by type of total elbow arthroplasty. J Shoulder Elbow Surg. 2013; 22:1121-1127. DOI
  20. Toulemonde J, Ancelin D, Azoulay V. Complications and revisions after semi-constrained total elbow arthroplasty: a mono-centre analysis of one hundred cases. Int Orthop. 2016; 40:73-80. DOI
  21. Prkic A, Welsink C, The B. Why does total elbow arthroplasty fail today? A systematic review of recent literature. Arch Orthop Trauma Surg. 2017; 137:761-769. DOI
  22. Schoch B, Wong J, Abboud J. Results of total elbow arthroplasty in patients less than 50 years old. J Hand Surg. 2017; 42:797-802. DOI
  23. Celli A, Morrey BF. Total elbow arthroplasty in patients forty years of age or less. J Bone Joint Surg Am. 2009; 91:1414-1418. DOI
  24. Kwak JM, Kholinne E, Sun Y. Clinical results of revision total elbow arthroplasty: comparison of infected and non-infected total elbow arthroplasty. Int Orthop. 2019; 43:1421-1427. DOI
  25. Farnsworth CW, Schott EM, Benvie AM. Obesity/type 2 diabetes increases inflammation, periosteal reactive bone formation, and osteolysis during Staphylococcus aureus implant-associated bone infection. J Orthop Res. 2018; 36:1614-1623. DOI
  26. Perretta D, van Leeuwen WF, Dyer G. Risk factors for reoperation after total elbow arthroplasty. J Shoulder Elbow Surg. 2017; 26:824-829. DOI
  27. Griffin JW, Werner BC, Gwathmey FW. Obesity is associated with increased postoperative complications after total elbow arthroplasty. J Shoulder Elbow Surg. 2015; 24:1594-1601. DOI
  28. Gill DR, Morrey BF. The Coonrad-Morrey total elbow arthroplasty in patients who have rheumatoid arthritis. A ten to fifteen-year follow-up study. J Bone Joint Surg Am. 1998; 80:1327-1335. DOI
  29. Kraay M, Figgie M, Inglis A. Primary semiconstrained total elbow arthroplasty. Survival analysis of 113 consecutive cases. J Bone Joint Surg Br. 1994; 76:636-640. DOI
  30. Plaschke HC, Thillemann TM, Brorson S. Implant survival after total elbow arthroplasty: a retrospective study of 324 procedures performed from 1980 to 2008. J Shoulder Elbow Surg. 2014; 23:829-836. DOI
